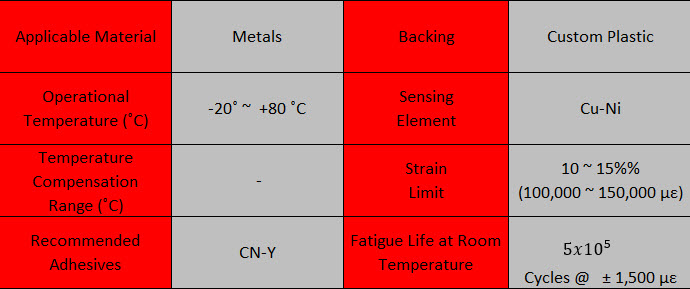

The YEF series gages can accommodate very large strains - up to 150,000 µε. They can be used on virtually any material in combination with our CN-Y adhesive. Factory attached integral lead wire in 2 or 3 wire arrangements and in lengths or 1, 3 or 5m are available. Click on the Gage Pattern item in the tables below to select STC and lead wire options and obtain pricing and availability. An additional click will place your selection in the shopping cart.
Official Representative of
WE PROUDLY SERVE
GGET IN TOUCH
Texas Measurements
979.764.0442 o
979.696.2390 f
303 Anderson
College Station, TX
77840
United States
Mexico
YEF Series - Large Strain
Gage
Pattern |
Sensing
Element
Length
(mm) |
Sensing
Element
Width
(mm) |
Backing
Length
(mm) |
Backing Width
(mm) |
Resistance Ω |
| YEFLAB-2 |
2 |
1.8 |
7.5 |
4.0 |
120 |
| YEFLAB-5 |
5 |
1.9 |
12.0 |
4.0 |
120 |
Single Axis
2 Axis Rosette
Gage
Pattern |
Sensing
Element
Length
(mm) |
Sensing
Element
Width
(mm) |
Backing
Length
(mm) |
Backing Width
(mm) |
Resistance Ω |
| YEFCAB-2 |
2 |
1.8 |
10.0 |
10.0 |
120 |
| YEFCAB-5 |
5 |
1.9 |
14.5 |
14.5 |
120 |
3 Axis Rosette
Gage
Pattern |
Sensing
Element
Length
(mm) |
Sensing
Element
Width
(mm) |
Backing
Length
(mm) |
Backing Width
(mm) |
Resistance Ω |
| YEFRAB-2 |
2 |
1.8 |
10.0 |
10.0 |
120 |
| YEFRAB-5 |
5 |
1.9 |
14.5 |
14.5 |
120 |
